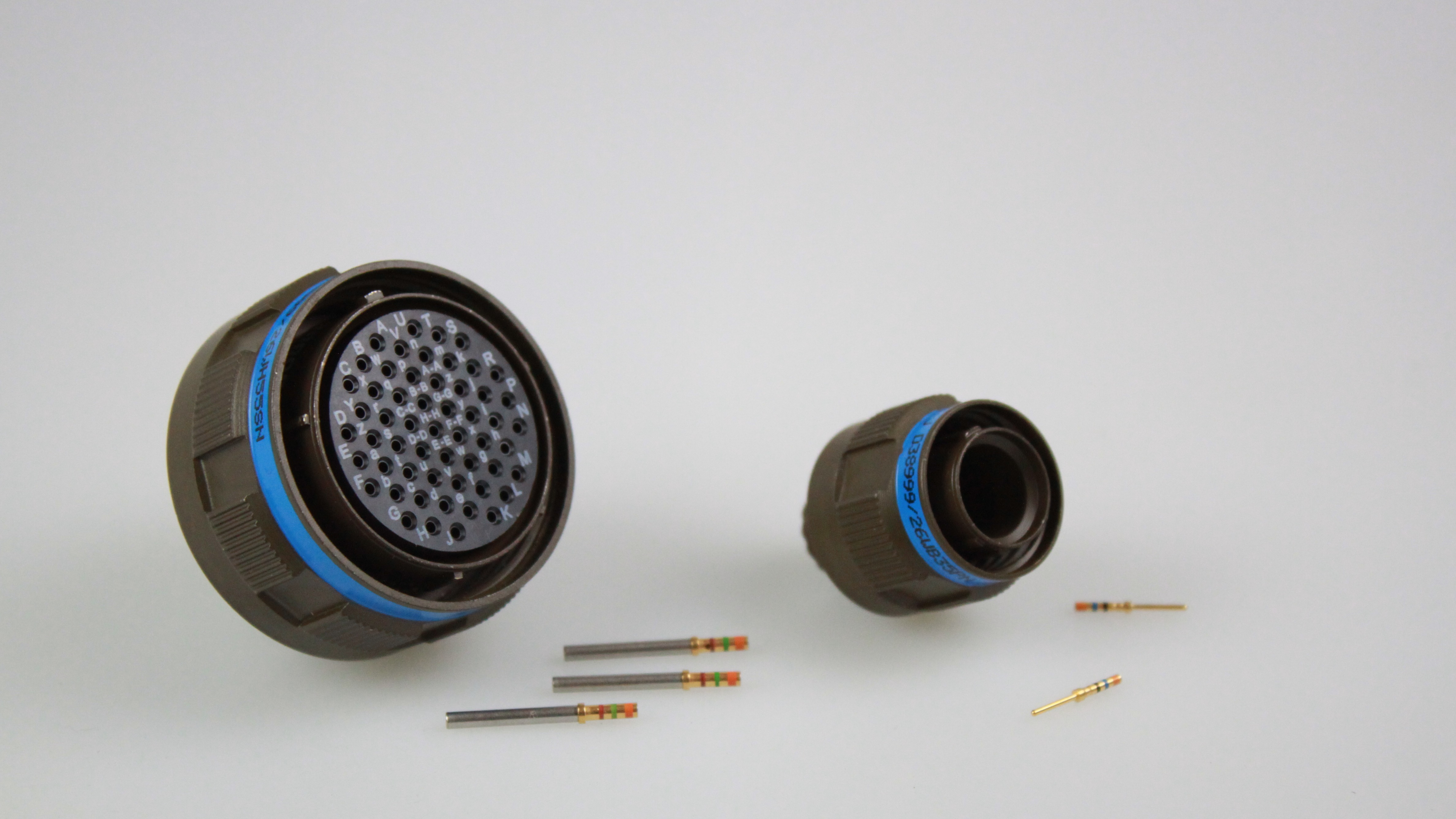

Connector Type: Circular Plug Connector (MIL-DTL-38999 Series III) Gender: Plug (with socket contacts visible on the left connector) Shell Style: Rugged, threaded coupling with knurled grip for secure and quick mating. Contact Arrangement: Left connector: High-density multi-pin (appears to be a 55-position layout with alphanumeric pin labeling) Right connector: Smaller pin count (possibly 9 to 13 positions) Color Bands: Blue banding identifies it as Series III (quick-thread coupling) Shell Material: Aluminum alloy or composite (with corrosion-resistant plating) Contact Type: Crimp contacts (loose contacts shown in front, gold-plated with color-coded bands for wire gauge) Applications: * Avionics * Ground vehicles * Military communication systems * Satellites and spacecraft * Harsh industrial environments Loose Contacts: Male and female crimp contacts with color-coded wire gauge indicators Resistors: Through-hole resistors likely shown for size reference or possible integration.
